MySQL Connection Dialogue

Previous pageReturn to chapter overviewNext page

If you have the Oracle MySQL version of ExSync then configuration options are:-



MySQL Server connection is set from within ExReport once the MySQL Server Schema has been installed.



The MySQL connection string dialogue is accessed from the main application toolbar



clip0014

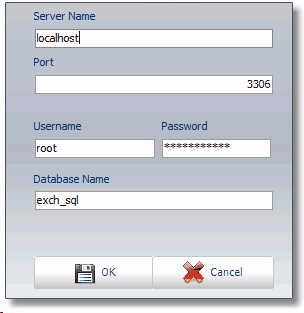

A dialogue appears:



clip0005



Add the MySQL host name to the 'Server Name' Field:



clip0006



Then add the MySQL port the default is 3306:



clip0007



Then add the root admin user name and password:



clip0008



Finally select the MYSQL database the default schema that ships with ExSync is Exch_SQL:



clip0009



Save the settings.
